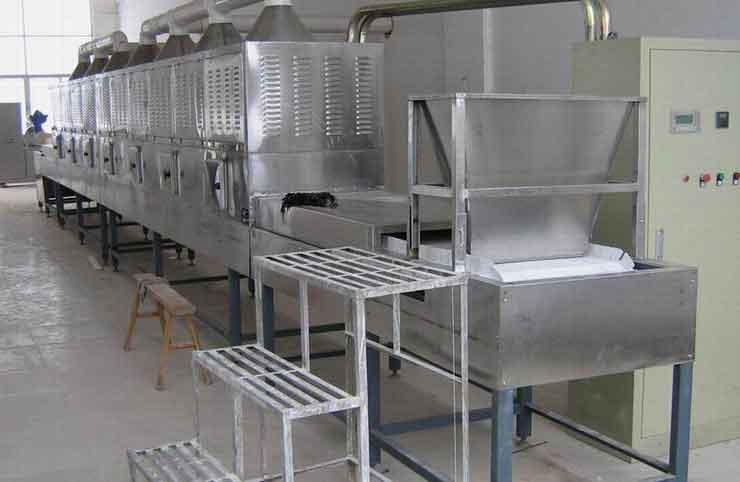

Microwave dryer

Microwave drying machine technical parameters:

1, Model: QX-60HM9

2, the input power supply: three-phase five-wire 380V ± 10% 50Hz ± 1%

3, the microwave output power: 60kW (adjustable)

Microwave frequency: 2450MHz ± 50Hz

5, rated input apparent power: ≤ 90kVA

6, expected out Height: 50mm

7, the transmission band width: 900mm

8, the transmission speed: 0.1 ~ 5m/min

9 Dimensions (L × W × H): about 13970 × 1460 × 1518mm

10, the working environment: 0 to 40 ℃, relative humidity ≤ 80%

11 microwave dryer production: hour drying dehydration 60kg

12, in line with GB 10436-1989 for microwave radiation hygiene standards

13, in line with GB/5226.1-2002 Safety of machinery electrical equipment

Above parameters for reference only, microwave dryer microwave drying equipment of different specifications can be designed and manufactured according to the user's actual production, I test prototype microwave equipment, provide free on-site production operations, combined with user products to provide a one-stop-technical services, welcome new and old friends to visit and negotiate.
